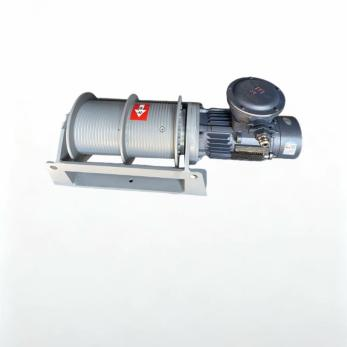

JSD Series Electric Winches

JSD electric winches use electric motor, planetary gearbox, brake and drum options for lifting, pulling, marine and industrial equipment.

Focus: Electric drive, rated load and duty cycle
Engineering boundary: Final sizing, configuration and interface require JST engineering confirmation.

Product Overview

Series capability and selection context

JSD electric winches use electric motor, planetary gearbox, brake and drum options for lifting, pulling, marine and industrial equipment.

Suitable where electric power is preferred and hydraulic supply is limited or unavailable.

Motor, reducer, brake and drum layout are selected by line pull, line speed and duty cycle.

Drum capacity, rope diameter, frame layout and electrical control options can be matched to the equipment.

Technical Data

Item	JSD Electric Winch
Power source	Electric motor and electrical control system
Best suited for	Industrial equipment, workshop, vehicle and sites with stable electric power
Control focus	Voltage, motor power, brake, control box and duty cycle
Customization	Drum, rope, brake, motor, reducer and electrical controls

Configuration Reference

Final sizing, configuration and interface require JST engineering confirmation.

Power supply	Motor voltage and duty cycle selected according to the equipment.
Control options	Pendant, control box, wireless remote, PLC interface and limit switch options.
Customization	Drum, brake, reducer, motor, mounting and surface treatment can be customized.

Applications

Selection Guide

Rated line pull: confirm working load, maximum load and required safety factor.
Rope capacity: provide wire rope diameter, effective rope length, drum width and number of rope layers.
Line speed: define required pulling or lifting speed under rated load and no-load conditions.
Power supply: confirm motor voltage, frequency, power limit and duty cycle.
Brake and holding: specify static holding, dynamic braking, emergency stop and safety requirements.
Installation space: check mounting foot, drum orientation, rope outlet direction and surrounding structure.
Control method: choose pendant, panel, wireless remote, PLC signal or customized electrical control box.
Single-drum or special drum design with customized rope groove and rope capacity.

Engineering Notes

Product type: Electric planetary winch.
Main components: Electric motor, planetary gearbox, brake, drum and control options.
Line pull: Configured according to working load and safety factor.
Rope capacity: Customized by rope diameter, drum width and required rope length.
Power supply: Motor voltage and duty cycle selected according to the equipment.
Control options: Pendant, control box, wireless remote, PLC interface and limit switch options.
Customization: Drum, brake, reducer, motor, mounting and surface treatment can be customized.

Final sizing, configuration and interface require JST engineering confirmation.
