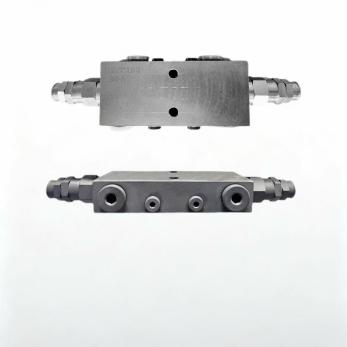

Custom Hydraulic Cartridge Valve Manifold Blocks

Hydraulic Manifold Blocks and Cartridge Valves

Custom Hydraulic Valve Blocks and Cartridge Valve Manifolds

JST designs custom hydraulic cartridge valve manifold blocks from your hydraulic schematic, integrating relief, check, counterbalance, flow control and directional valves into one compact block. Blocks are machined in aluminum, steel or ductile iron with Metric, BSPP, SAE, NPT or custom port threads.

Focus: Circuit integration and valve layout
Engineering boundary: Final sizing, configuration and interface require JST engineering confirmation.

Request engineering review

Product Overview

Series capability and selection context

Custom hydraulic cartridge valve manifold blocks built from your schematic: relief, check, counterbalance, flow and directional valves in one compact OEM block.

Circuit-specific valve integration

Cartridge valves, relief valves, check valves, counterbalance valves and flow controls can be integrated into one block.

Compact hydraulic layout

Manifold design reduces hose routing, leakage points and installation space in OEM hydraulic systems.

Designed from schematic

JST reviews the hydraulic schematic, valve list, port threads and mounting envelope before machining.

Configuration Reference

Verified configuration choices

Final sizing, configuration and interface require JST engineering confirmation.

Relief valve	System pressure protection and overload safety
Check valve	One-way flow control and circuit isolation
Counterbalance valve	Load holding and controlled lowering for winches and cylinders
Flow control valve	Speed regulation and actuator synchronization
Directional valve	Actuator direction control and circuit switching
Anti-cavitation valve	Motor or actuator protection during overrunning load conditions

Applications

Typical applications

Hydraulic winch load holding and smooth lowering circuits
Wheel drive, slewing drive and travel drive control systems
Hydraulic power units and compact hydraulic control stations
Construction, agricultural, mining and forestry machinery
Marine deck equipment and offshore hydraulic systems
Industrial presses, test benches and machine tools

Selection Guide

Information used for preliminary selection

Hydraulic circuit: provide schematic, function description or target control logic.
Pressure and flow: confirm rated pressure, peak pressure, maximum flow and oil type.
Valve functions: define relief, check, counterbalance, flow control, directional control or proportional control needs.
Port layout: specify port thread, port direction, mounting face and connection space.
Material: choose aluminum, ductile iron or steel according to pressure, weight and corrosion requirement.
Installation: confirm mounting holes, block envelope, sealing surface and service access.
Testing: define pressure test, leakage test, cleanliness and documentation requirements.
Custom valve cavity layout and oil passage design according to hydraulic schematic.

Engineering Notes

Series-specific review points

Product type: Custom hydraulic manifold block / cartridge valve manifold.
Valve functions: Relief, check, counterbalance, flow control, directional control and custom logic.
Materials: Aluminum, steel or ductile iron according to pressure and application.
Ports: Metric, BSPP, SAE, NPT or custom port threads.
Testing: Pressure, leakage and functional testing can be discussed.
Customization: Valve cavity, oil passage, mounting, surface treatment and assembly options.

Final sizing, configuration and interface require JST engineering confirmation.
