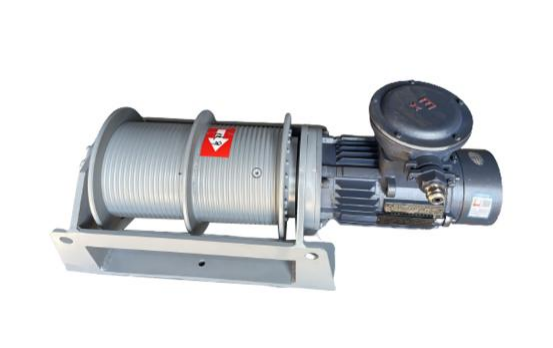

JSD Series Electric Winches
Short Description:
JSD electric winches use electric motor, planetary gearbox, brake and drum options for lifting, pulling, marine and industrial equipment.
JSD electric winches use electric motor, planetary gearbox, brake and drum options for lifting, pulling, marine and industrial equipment.
JSD Electric Winch Specification Notes
| Product type | Electric planetary winch |
| Main components | Electric motor, planetary gearbox, brake, drum and control options |
| Line pull | Configured according to working load and safety factor |
| Rope capacity | Customized by rope diameter, drum width and required rope length |
| Power supply | Motor voltage and duty cycle selected according to the equipment |
| Control options | Pendant, control box, wireless remote, PLC interface and limit switch options |
| Customization | Drum, brake, reducer, motor, mounting and surface treatment can be customized |
Applications of JSD Electric Winches
- Industrial lifting and pulling equipment
- Workshop, warehouse and maintenance systems
- Special vehicles and mobile service equipment
- Marine deck equipment and light-duty shipboard pulling systems
- Construction, mining and utility equipment where electric power is preferred
Detailed selection notes, FAQ, comparison tables and related guide links are kept here for buyers who need deeper technical information.
JSD Series Electric Winches
The JSD Series electric winch is designed for lifting, pulling and positioning tasks where an electric drive is preferred over hydraulic power. It combines an electric motor, planetary gearbox, braking system, drum and control options in a compact winch package for industrial equipment, mobile machinery, marine deck equipment and special vehicles.
Compared with hydraulic winches, electric winches can simplify the power source and control system when the machine already has suitable electrical power. JST Hydraulic can customize pulling capacity, rope capacity, drum layout, brake, motor voltage and control interface according to the project.
How to Select an Electric Winch
- Rated line pull: confirm working load, maximum load and required safety factor.
- Rope capacity: provide wire rope diameter, effective rope length, drum width and number of rope layers.
- Line speed: define required pulling or lifting speed under rated load and no-load conditions.
- Power supply: confirm motor voltage, frequency, power limit and duty cycle.
- Brake and holding: specify static holding, dynamic braking, emergency stop and safety requirements.
- Installation space: check mounting foot, drum orientation, rope outlet direction and surrounding structure.
- Control method: choose pendant, panel, wireless remote, PLC signal or customized electrical control box.
Electric Winch vs Hydraulic Winch
| Item | JSD Electric Winch | JSJ / NJ Hydraulic Winch |
|---|---|---|
| Power source | Electric motor and electrical control system | Hydraulic motor, valve and hydraulic power source |
| Best suited for | Industrial equipment, workshop, vehicle and sites with stable electric power | Mobile machinery, marine deck systems and hydraulic equipment |
| Control focus | Voltage, motor power, brake, control box and duty cycle | Pressure, flow, valve, brake and hydraulic circuit |
| Customization | Drum, rope, brake, motor, reducer and electrical controls | Drum, rope, hydraulic motor, brake, valve and distributor |
Common Custom Options
- Single-drum or special drum design with customized rope groove and rope capacity.
- Planetary gearbox ratio selected for required torque and line speed.
- Electric motor voltage, power, duty cycle and protection grade options.
- Brake, clutch, limit switch, overload protection and emergency stop options.
- Control box, pendant control, wireless remote control or PLC-compatible interface.
- Surface treatment and sealing options for outdoor, marine or dusty environments.
Related Winch and Drive Products
For hydraulic pulling systems, see JSJ hydraulic winches and NJ compact hydraulic winches. For gearbox and rotary drive matching, see JSC hydraulic transmission units and JFB planetary rotary gearboxes. For hydraulic control systems, see hydraulic manifold blocks and cartridge valves.
FAQ
Can JST Hydraulic customize an electric winch for OEM equipment?
Yes. Pulling capacity, rope capacity, drum layout, motor voltage, gearbox ratio, brake and control system can be customized.
What information is needed for JSD electric winch selection?
Please provide rated load, rope diameter and length, required speed, power supply, duty cycle, installation drawing and working environment.
Can the winch include electrical controls?
Yes. Control box, pendant control, wireless remote control, limit switch and overload protection can be discussed according to project needs.
Request a Technical Recommendation
Send your line pull, rope capacity, line speed, motor voltage, duty cycle and installation space to JST Hydraulic. Our team can recommend a JSD electric winch configuration for review.
