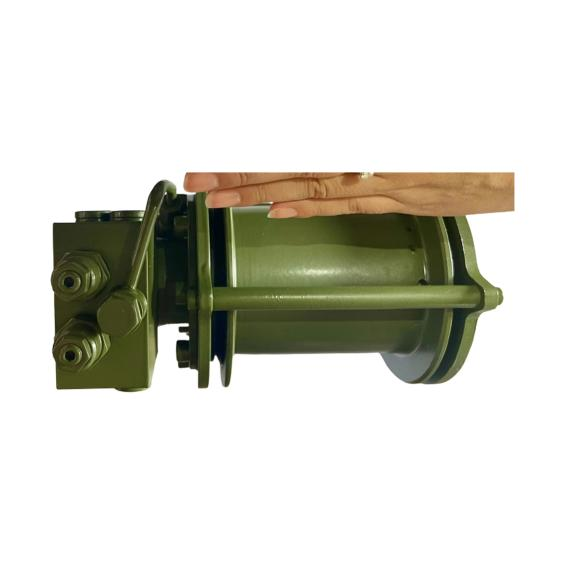

NJ Series Compact Hydraulic Winches
Short Description:
NJ hydraulic winches are compact orbital-motor winches for light and medium pulling, recovery, lifting and rope handling applications.
NJ hydraulic winches are compact orbital-motor winches for light and medium pulling, recovery, lifting and rope handling applications.
| Selection Item | Typical NJ Series Range / Option | Selection Note |
|---|---|---|
| Rated line pull | Light to medium-duty custom range | Define first-layer pull and required safety margin. |
| Rope diameter | Commonly small to medium rope sizes | Rope diameter affects drum design, fairlead and rope layer pressure. |
| Rope capacity | From short utility rope to longer custom drum capacity | Longer rope capacity requires a wider or larger drum. |
| Hydraulic motor | Orbital motor, displacement selected by pressure and flow | Motor displacement balances pulling torque and line speed. |
| Gear reduction | Planetary gearbox, custom ratio available | Higher ratio increases pull but reduces speed. |
| Brake | Hydraulic release multi-disc brake or project-specific brake | Important for holding load and controlled stopping. |
| Valve options | Balance, relief, anti-cavitation and speed control valves | Protects the circuit and improves smooth rope handling. |
| Mounting | Base, flange or custom frame | Should match available machine envelope and rope outlet direction. |
| Environment | Industrial, mobile, agricultural, marine auxiliary duty | Outdoor and marine applications may need coating and sealing upgrades. |
Engineering Notes
- Line speed depends strongly on available hydraulic flow.
- Line pull changes by rope layer; outer layers usually provide lower pull.
- For lifting use, brake holding capacity and safety requirements must be confirmed.
- Compact winches still need enough clearance for rope angle, fairlead and maintenance.
Typical Applications
- Vehicle and trailer recovery: compact hydraulic pulling systems for service vehicles, trailers and special equipment.
- Small marine deck equipment: net haulers, auxiliary deck winches and light-duty rope handling systems.
- Agricultural and forestry machinery: pulling, positioning and tensioning tasks where compact hydraulic power is available.
- Construction service tools: cable laying, maintenance pulling, fencing, utility equipment and compact lifting devices.
- Industrial auxiliary systems: light pulling, positioning and controlled movement in custom hydraulic machinery.
Best-Fit Buyer Profile
NJ Series hydraulic winches are best for OEMs and equipment builders who need a compact custom winch rather than a large heavy-duty unit. They are also useful for hydraulic system integrators who need a winch matched to existing machine flow and pressure.
Request a Technical Recommendation
For a fast recommendation, send your line pull, rope diameter, rope length, target speed, pressure, flow, mounting drawing and working environment to jw.luo@jst-hydraulic.com or WhatsApp +86 186 6857 0723.
Detailed selection notes, FAQ, comparison tables and related guide links are kept here for buyers who need deeper technical information.
NJ Series hydraulic winches are compact orbital-motor driven winches for light and medium-duty pulling, lifting, recovery and rope handling tasks. Compared with large heavy-duty hydraulic winches, the NJ Series focuses on small installation space, flexible customization, smooth low-speed control and high power density.
Why Choose NJ Series Hydraulic Winches
- Compact hydraulic drive: orbital motor and planetary gearbox layout helps deliver useful pulling force where installation space is limited.
- Light to medium-duty range: suitable for small deck winches, recovery winches, agricultural equipment, service vehicles and auxiliary lifting tools.
- Flexible customization: drum size, rope capacity, mounting flange, motor displacement, gearbox ratio, brake type and valve options can be configured.
- Smooth low-speed operation: orbital motors provide controllable torque at low speed, useful for careful rope handling and positioning.
- Integrated safety options: spring-applied hydraulic release brake, balance valve, relief valve and anti-cavitation options can be added according to duty.
- Cost-effective OEM solution: the NJ Series is a practical choice when the project does not require a large JSJ heavy-duty winch.
How to Select an NJ Hydraulic Winch
To select an NJ winch, start with the machine's hydraulic power and the rope work the winch must perform. Key data includes:
- Required line pull: define first-layer pull and expected pull on outer rope layers.
- Rope diameter and capacity: confirm rope size, rope length and whether single-layer or multi-layer spooling is needed.
- Available hydraulic flow: flow mainly decides line speed. Standard-flow and high-flow machines need different motor choices.
- Available pressure: pressure mainly decides pulling force, together with motor displacement and reduction ratio.
- Duty cycle: occasional recovery, frequent pulling, marine deck work and industrial use need different thermal margins.
- Mounting method: share the available envelope, hole pattern, rope outlet direction and fairlead position.
- Control requirement: manual valve, remote operation, speed control, brake release and emergency handling can be planned together.
When NJ Is a Better Fit Than JSJ
Choose NJ Series when the application needs a compact, efficient and economical hydraulic winch for lighter loads. Choose JSJ Series Hydraulic Winches when the project needs very high line pull, large rope capacity, heavy-duty lifting or demanding mining, offshore and drilling equipment duty.
Common Custom Options
- Orbital motor displacement matched to available pressure and flow
- Planetary reduction ratio for speed or pulling force priorities
- Plain drum or grooved drum for better rope management
- Spring-applied hydraulic release brake for load holding
- Balance valve, relief valve, anti-cavitation valve and speed control valve options
- Base mounting, flange mounting or custom frame for OEM machines
- Marine coating and sealing options for outdoor or saltwater environments
Related Products
For heavy-duty pulling and lifting, see JSJ Series Hydraulic Winches. For electric pulling systems, see JSD Series Electric Winches. For compact hydraulic drive components, see BM Series Orbital Hydraulic Motors and JSC Series Planetary Gearboxes.
FAQ
What is the typical capacity range of an NJ hydraulic winch?
NJ winches are generally used for light to medium-duty applications, with capacity depending on drum size, motor displacement, gearbox ratio, pressure, flow and brake configuration.
Can an NJ winch be used on a vehicle or trailer?
Yes. NJ winches are often suitable for vehicle recovery, trailer pulling, utility equipment and service tools when the hydraulic system can provide enough flow and pressure.
Can JST customize the drum and mounting dimensions?
Yes. Drum diameter, drum length, rope capacity, mounting plate, flange, rope outlet direction and valve arrangement can be designed according to your machine.
What information should I send for quotation?
Send line pull, rope diameter, rope length, required line speed, hydraulic pressure and flow, duty cycle, installation drawing and working environment.
