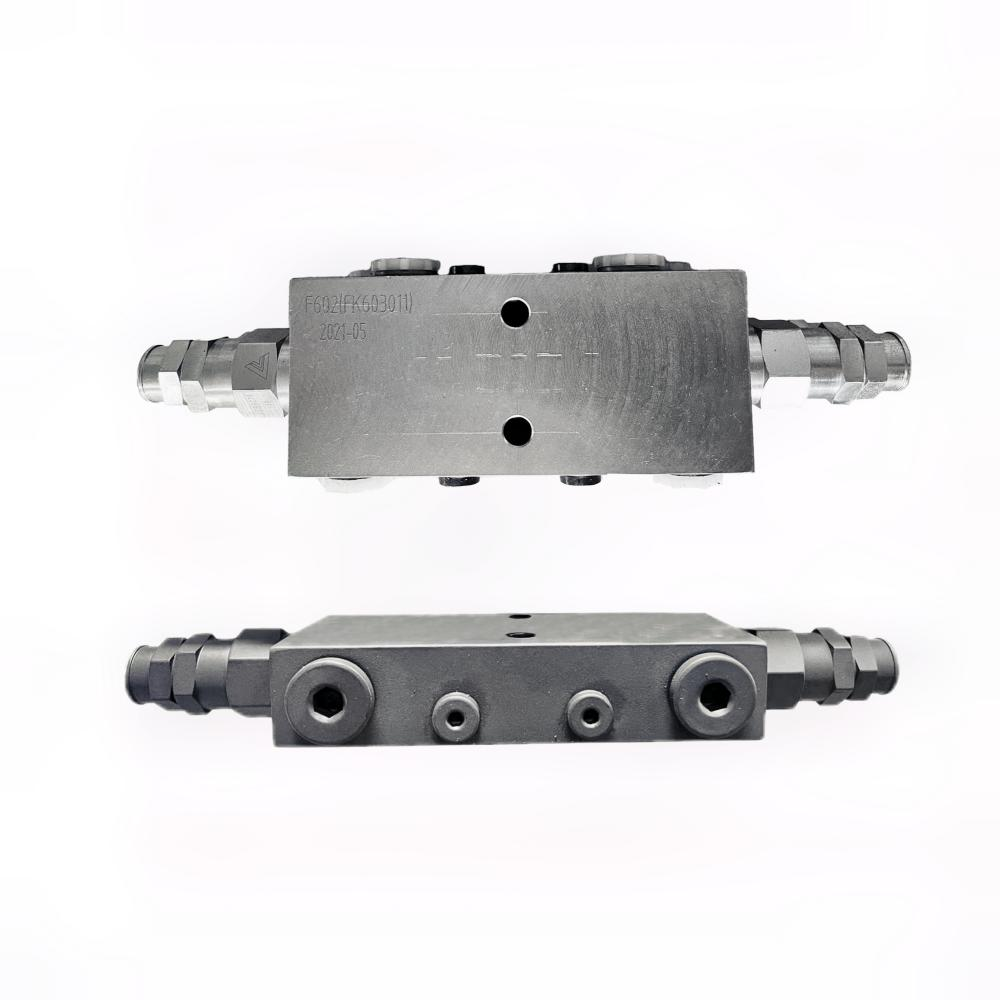

Custom Hydraulic Cartridge Valve Manifold Blocks
Short Description:
Custom hydraulic manifold blocks integrate pressure, flow, directional and load-control functions into compact OEM hydraulic systems.
Custom hydraulic manifold blocks integrate pressure, flow, directional and load-control functions into compact OEM hydraulic systems.
Hydraulic Manifold Block Specification Notes
| Product type | Custom hydraulic manifold block / cartridge valve manifold |
| Valve functions | Relief, check, counterbalance, flow control, directional control and custom logic |
| Materials | Aluminum, steel or ductile iron according to pressure and application |
| Ports | Metric, BSPP, SAE, NPT or custom port threads |
| Testing | Pressure, leakage and functional testing can be discussed |
| Customization | Valve cavity, oil passage, mounting, surface treatment and assembly options |
Applications of Hydraulic Manifold Blocks
- Hydraulic winch load holding and smooth lowering circuits
- Wheel drive, slewing drive and travel drive control systems
- Hydraulic power units and compact hydraulic control stations
- Construction, agricultural, mining and forestry machinery
- Marine deck equipment and offshore hydraulic systems
- Industrial presses, test benches and machine tools
Detailed selection notes, FAQ, comparison tables and related guide links are kept here for buyers who need deeper technical information.
Custom Hydraulic Cartridge Valve Manifold Blocks
JST Hydraulic designs and manufactures hydraulic manifold blocks and cartridge valve assemblies for compact hydraulic control systems. A custom manifold can integrate pressure control, flow control, directional control, load holding, anti-cavitation and safety functions into one machined block with clean oil routing and reliable sealing.
These products are used in hydraulic winches, wheel drives, slewing drives, power units, construction machinery, agricultural equipment, marine systems and industrial hydraulic equipment. JST Hydraulic can support valve selection, circuit review, port layout, material choice and machining according to customer drawings or functional requirements.
How to Specify a Hydraulic Manifold Block
- Hydraulic circuit: provide schematic, function description or target control logic.
- Pressure and flow: confirm rated pressure, peak pressure, maximum flow and oil type.
- Valve functions: define relief, check, counterbalance, flow control, directional control or proportional control needs.
- Port layout: specify port thread, port direction, mounting face and connection space.
- Material: choose aluminum, ductile iron or steel according to pressure, weight and corrosion requirement.
- Installation: confirm mounting holes, block envelope, sealing surface and service access.
- Testing: define pressure test, leakage test, cleanliness and documentation requirements.
Common Manifold and Cartridge Valve Functions
| Function | Typical use |
|---|---|
| Relief valve | System pressure protection and overload safety |
| Check valve | One-way flow control and circuit isolation |
| Counterbalance valve | Load holding and controlled lowering for winches and cylinders |
| Flow control valve | Speed regulation and actuator synchronization |
| Directional valve | Actuator direction control and circuit switching |
| Anti-cavitation valve | Motor or actuator protection during overrunning load conditions |
Custom Options
- Custom valve cavity layout and oil passage design according to hydraulic schematic.
- Aluminum, steel or ductile iron block material options.
- Metric, BSPP, SAE, NPT or customized port threads.
- Integrated test ports, sensors, plugs, pressure switches and cartridge valve assemblies.
- Surface treatment, anodizing, zinc plating or painting according to environment.
- Assembly testing and documentation for OEM batch production.
Related Hydraulic Products
Hydraulic manifold blocks are often used together with JSJ hydraulic winches, JST hydraulic wheel drives, JSH hydraulic slewing drives, BM orbital hydraulic motors and hydraulic power units.
FAQ
Can JST Hydraulic manufacture manifold blocks from a hydraulic schematic?
Yes. We can review the circuit, select suitable cartridge valves and prepare a manifold layout according to required pressure, flow and installation space.
Which materials are available?
Common options include aluminum for compact low-weight systems and steel or ductile iron for higher pressure or heavy-duty applications.
Can the manifold be supplied with valves assembled?
Yes. JST Hydraulic can supply machined blocks, cartridge valves, plugs, fittings and assembled manifold units depending on project requirements.
Request a Technical Recommendation
Send your hydraulic schematic, pressure, flow, valve function requirements, port layout and installation space to JST Hydraulic. Our team can review the manifold block design and customization options.
