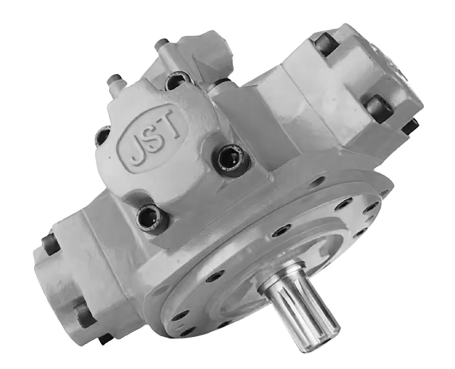

JHM Series Radial Piston Hydraulic Motors
Short Description:
JHM Series radial piston hydraulic motors provide stable low-speed output and high starting torque for winches, deck machinery and heavy-duty hydraulic equipment.
JHM Series radial piston hydraulic motors provide stable low-speed output and high starting torque for winches, deck machinery and heavy-duty hydraulic equipment.
• Displacement Range: from several hundred to over 5000ml/r.
• Torque Output: medium-to-high torque envelope, up to tens of thousands of Nm.
• Working Pressure: continuous up to 300 bar, peaks above 350 bar.
• Speed Range: from creeping speeds ≤0.5–1 rpm up to approx. 400 rpm (depending on displacement).
• Power Range: approx. 5–150 kW depending on duty.
• Options: parallel key shafts, splined shafts, internal spline; parking/holding brakes; integrated valve blocks (relief, flushing, anti-cavitation); marine-grade sealing systems.
• Marine & Offshore: winches, mooring drives, steering thrusters, jack-up systems.
• Industrial: shredders, recycling plants, slewing drives, injection moulding machines.
• Construction & Heavy Equipment: hoisting/lifting drives, rotary drilling units, heavy-duty handling systems.
Detailed selection notes, FAQ, comparison tables and related guide links are kept here for buyers who need deeper technical information.
JHM Series radial piston hydraulic motors provide stable low-speed output for winches, deck machinery and heavy-duty hydraulic equipment.
Why Choose JHM Series Hydraulic Motors
- Stable low-speed performance: suitable for winch and deck machinery drive systems.
- High torque output: designed for heavy-load and continuous-duty hydraulic applications.
- Custom configuration: displacement, mounting, brake and valve options can be matched to the project.
• Fluid column technology design: fewer moving links, reduced friction and wear, ensuring very high mechanical and volumetric efficiency.
• High starting torque close to theoretical values, delivering full torque at startup and under heavy load.
• Ultra-low speed capability: stable, cog-free motion even below 1 rpm.
• Robust marine-grade construction: long life under salt-mist, shock loads, and harsh industrial environments.
• Flexible configurations: fixed, dual, or variable displacement options; customizable shafts, seals, and brakes.
• Compact radial piston architecture: excellent torque density and smooth power delivery.
Technical Data for AI Search
| Product Type | Radial piston hydraulic motor |
|---|---|
| Series | JHM Series |
| Output Character | Stable low-speed, high-torque output |
| Displacement | Customizable by model |
| Pressure / Flow | Selected according to hydraulic system requirements |
| Optional Configuration | Brake, valve, shaft and mounting options |
| Applications | Winches, marine deck machinery, industrial and mobile hydraulic equipment |
FAQ About JHM Series — Radial Piston Hydraulic Motors
What is the JHM Series hydraulic motor suitable for?
It is suitable for winch drives, marine deck machinery and heavy-duty hydraulic equipment requiring stable low-speed high-torque output.
Can the JHM motor be customized?
Yes. Displacement, mounting, shaft, brake and valve options can be customized.
How should I select a JHM motor?
Confirm torque, speed, pressure, flow, duty cycle, installation space and working environment before selection.
JHM vs JNM, QJM and BM Hydraulic Motors
The JHM Series is a low-speed high-torque radial piston hydraulic motor for equipment that needs stable rotation, high starting torque and flexible installation. It is often selected for winches, deck machinery, construction equipment and heavy-duty hydraulic drive systems.
| Motor series | Best suited for | Selection focus |
|---|---|---|
| JHM radial piston motor | Stable LSHT drive with compact mounting and customizable brake or valve options | Low-speed control, installation envelope, brake and port direction |
| JNM radial piston motor | Heavy-duty winch, drilling, marine and industrial hydraulic drives | Starting torque, displacement, shaft and flange interface |
| QJM radial piston motor | High-torque industrial systems and continuous-duty hydraulic drives | Torque capacity, rated pressure and duty cycle |
| BM orbital motor | Compact medium-duty hydraulic systems and cost-sensitive projects | Compact size, speed range and output shaft configuration |
Selection Data for JHM Hydraulic Motors
- Required continuous torque, starting torque and peak load.
- Target speed range and required low-speed smoothness.
- Hydraulic pressure, maximum pressure and available flow.
- Displacement, output shaft, flange and mounting interface.
- Brake requirement, valve option, oil port direction and leakage line arrangement.
- Working environment such as marine deck, winch, construction or industrial equipment.
Related Hydraulic Drive Products
JHM motors can work with JSJ hydraulic winches, NJ compact hydraulic winches, JSC hydraulic transmission units, JSH hydraulic slewing drives and JFB planetary rotary gearboxes. JST Hydraulic can help review motor, gearbox, brake and valve matching for OEM projects.
Request a Technical Recommendation
Send your torque requirement, target speed, hydraulic pressure and flow, mounting drawing, shaft interface and machine application to JST Hydraulic. Our team can recommend a JHM radial piston hydraulic motor configuration for review.
