How to Select a Hydraulic Motor for Mining Equipment

Choosing a hydraulic motor for mining equipment involves more than matching a pressure rating to a catalog number. Underground coal mines, open-pit quarries, and mineral processing facilities each impose specific combinations of shock loading, sustained heavy duty, and safety compliance requirements that determine whether a motor will perform reliably over its intended service life.

This guide outlines the key technical factors engineers and procurement teams need to evaluate when specifying hydraulic motors for mining applications.

STEP 1: DEFINE THE LOAD PROFILE

Mining equipment typically falls into one of two load categories:

Continuous heavy load: Conveyor drives, slurry pumps, and ventilation systems require motors with stable performance at steady-state, low internal leakage, and long MTBF.

Shock and cyclic load: Roadheader cutting heads, shearer drums, and jaw crushers generate repeated high-impact loads. Motors for these applications must sustain peak torques of 1.5-2x rated output without accelerated wear.

Getting the load classification wrong at the specification stage is one of the most common causes of premature motor failure in mining environments.

STEP 2: DETERMINE SPEED AND DRIVE CONFIGURATION

The required output speed determines whether the application calls for a low-speed high-torque (LSHT) motor or a high-speed motor with a downstream planetary gearbox.

LSHT motors (direct drive): Preferred when output speeds fall below 200-500 rpm. Eliminates the gearbox and reduces the number of maintenance points.

High-speed motor + gearbox: Preferred where variable speed control is required or where system efficiency is a priority.

For integrated drive solutions, the JSC Series hydraulic transmission units from JST Hydraulic combine JNM or JHM series motors with a multi-stage planetary reducer and a spring-applied, hydraulically released disc brake in a single housing. This eliminates the interface compatibility issues that arise when sourcing motors and gearboxes from separate suppliers.

STEP 3: VERIFY KEY PERFORMANCE PARAMETERS

Displacement (cm3/rev)

Higher displacement = lower output speed at the same flow, higher torque at the same pressure. Size displacement to match the target output speed against the available flow from the hydraulic power unit.

Operating Pressure

The JNM Series radial piston motors from JST Hydraulic are rated up to 38 MPa, covering the high-pressure requirements typical of mineral extraction and hoisting equipment.

Starting Mechanical Efficiency

This is the ratio of actual output torque at startup to theoretical torque. Low starting efficiency (below 0.85) causes unreliable load holding in winch applications and slip-stick behavior in traction drives at creep speed. The JHM Series (crankshaft-type radial piston) achieves high starting efficiency through a five-piston configuration with planar port plate compensation, suitable for applications requiring stable output below 5 rpm.

Shaft Bearing Load Ratings

Mining drives subject motor output shafts to combined radial and axial loads. Confirm dynamic load capacity (C) and calculated L10 bearing life against actual operating loads.

MOTOR TYPE REFERENCE

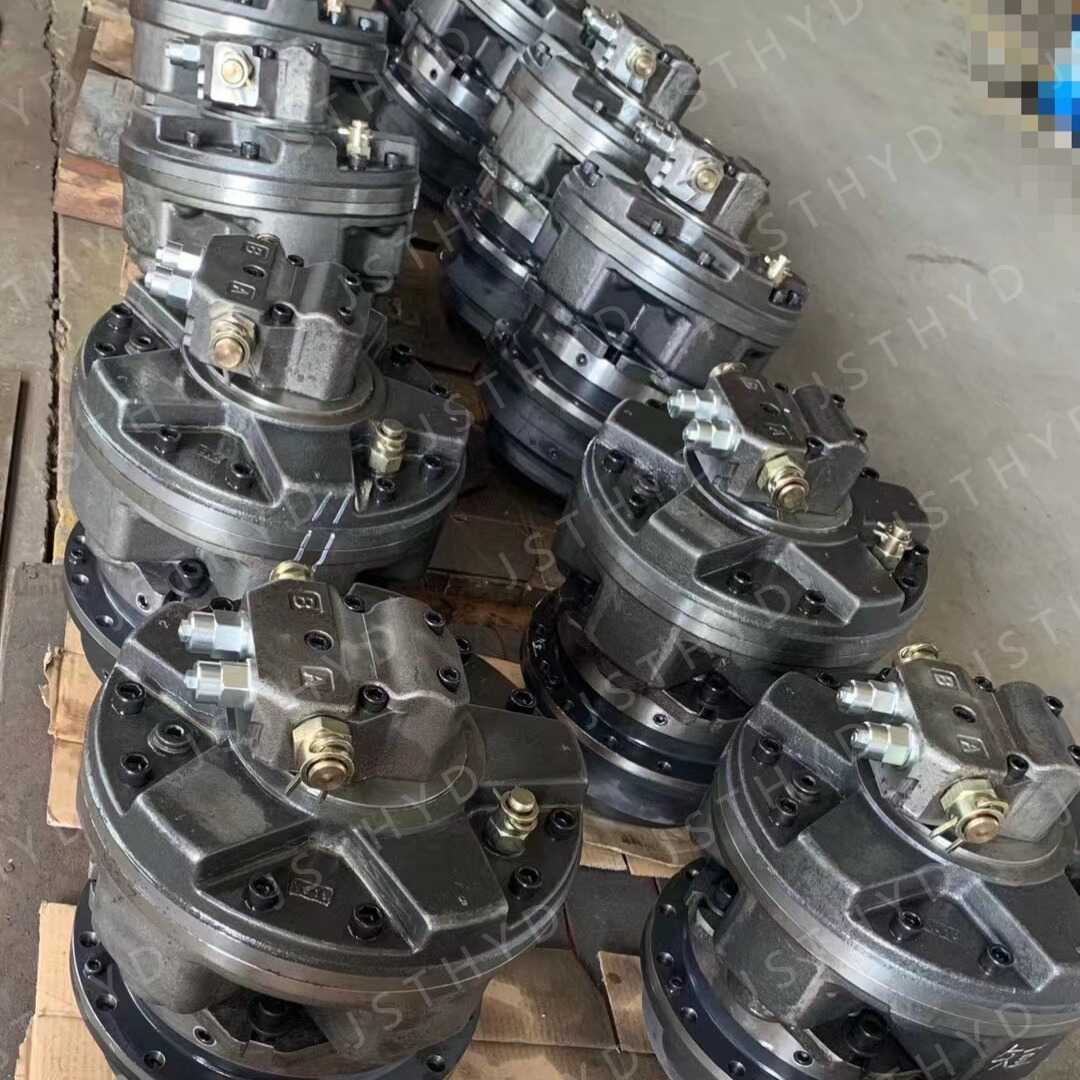

Radial piston motors (JNM / JHM Series)

Best for: Shearer drives, roadheader cutting heads, hoist winches, underground traction drives.

Characteristics: Highest torque density among LSHT types. Smooth output at very low speeds. High radial shock resistance.

Typical range: 250-20,000 cm3/rev | 0.5-500 rpm | up to 38 MPa

Gerotor (orbit) motors

Best for: Auxiliary and secondary drives with moderate load.

Characteristics: Compact and cost-effective. Not recommended for main cutting or hoisting drives where shock loads and very low-speed stability are required.

Axial piston motors

Best for: High-speed variable-speed applications with downstream reduction.

Characteristics: High power density and efficiency. Requires clean fluid (ISO 4406 class 16/14/11 or better). More contamination-sensitive than radial piston types.

COAL MINE CERTIFICATION REQUIREMENT

In China, hydraulic components supplied to underground coal mines must be traceable to manufacturers holding the national designation as a Designated Coal Mine Equipment Component Manufacturer. This designation requires the supplier's quality management system to be independently audited against coal mine safety regulations.

JST Hydraulic holds this national designation and is also certified under ISO 9001:2015, ensuring full traceability of components supplied to coal mine OEMs and operators.

COMMON MISTAKES TO AVOID

Sizing only for continuous torque: Always verify peak torque capability against maximum expected transient loads, not just steady-state values.

Overlooking low-speed stability: If the application requires controlled load descent or precision positioning at low speeds, confirm the motor's minimum stable speed specification.

Mismatched motor and gearbox interfaces: When sourcing from separate suppliers, verify shaft dimensions, flange standards, and spline specifications before ordering. Interface mismatches are a leading cause of installation delays.

FREQUENTLY ASKED QUESTIONS

Q: Which JST motor series is better suited for a roadheader cutting head drive?

A: The JHM Series (crankshaft-type radial piston) is typically preferred for cutting head applications due to its superior low-speed stability and high peak torque capability. For hoist and travel drives where higher speed ranges are needed, the JNM Series offers a wider operating range.

Q: What are the advantages of the JSC Series integrated transmission over separate motor and gearbox components?

A: The JSC Series is designed and verified as a matched system, eliminating interface alignment issues. The integrated spring-applied brake provides fail-safe load holding without additional external brake components, simplifying installation and reducing potential leak points.

Q: Does JST supply components for coal mine applications?

A: Yes. JST Hydraulic is a nationally designated coal mine equipment component manufacturer. JNM and JHM series motors and JSC series transmission units are supplied to coal mine OEMs and equipment integrators.
